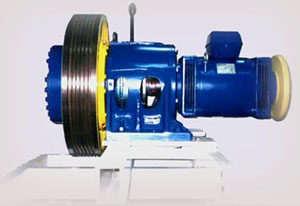

| Driving system of Rhine
lift is installed with professional bevel gear planetary transmission,
main characteristics are low oil temperature, low noise, and
high efficiency. Mechanic driving efficiency reached 98%,
more than 33% higher than that of the conventional turbo transmission.
|
|
|

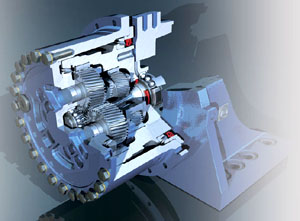

| Bevel-geared planetary transmission
has perfect design, and the manufacturing process is finely made
with high-tech. Its characteristics are high machinery precision,
well-polished surface, good wear-and-tear performance, long life,
etc. Under the normal working and maintenance condition The finished
gearbox can run with low noise for 10 to 20 years without any overhaul.
If the compound gear oil is used, the oil changing time can be 10
years (as long as the oil quality is not changing, it is not necessary
for changing the oil). |
|
| On the inspection result from
the Lift Inspection Center under the German
Ministry of Construction it is clearly stated,
that with an operating temperature of 14.10oC,
Rhine bevel-geared planetary transmission
can continuously work for 120 hours without
|
|
|
|
increasing the oil temperature.
According to the statistics from German Lift
Magazine, planetary-geared lift is the most
money-saving new technology, for reference please
check the following table
| |
Power
needed |
| Planetary geared transmission |
5.5kw |
| Variable voltage worm gear
traction machine |
7.5kw |
| Dual-speed Worm Transmission |
7.5kw |
| Hydraulic Lift Transmission |
20kw |
Since the planetary-geared transmission is
running with a high mechanic efficiency, a smaller
generator can be used, so that 30%-40% of energy
can be saved.
|
|
|
|
|
|
